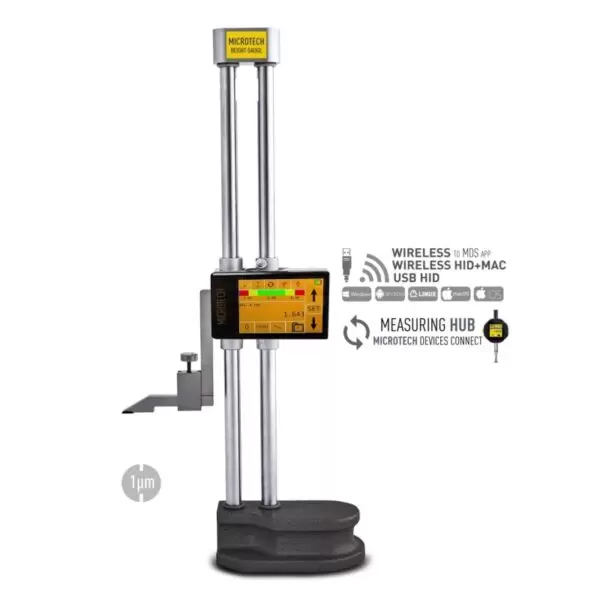

The MICROTECH MICRON Tablet Computerised Height Gauge with e-Force Control is an advanced precision measuring instrument featuring a patented computerised measuring system, Swiss-made measurement technology and electronic measuring force control with wireless connectivity for Industry 4.0 applications.

Featuring MICROTECH's innovative Tablet measuring system and a high-precision Swiss-made reading system with 0.001 mm (1 µm) resolution, the MICRON height gauge combines advanced measurement capabilities with real-time graphical display, internal memory, statistical analysis and versatile data transfer options.

The integrated e-Force electronic measuring force control system allows users to select and maintain a consistent measuring force between 1 N and 20 N. Its automatic measurement mode enables measurement values to be recorded or transmitted automatically once the preset force has been reached, improving measurement consistency, repeatability and efficiency.

Available in 300 mm, 500 mm, 1000 mm, 1500 mm and 2000 mm measuring ranges.

Key Features:
• Patented MICROTECH computerised measuring system (US10184772, UA111194, UA112361, UA121681)
• High-precision Swiss-made reading system with 0.001 mm (1 µm) resolution
• Electronic e-Force measuring force control, adjustable from 1 N to 20 N
• Automatic measurement recording or data transmission when the preset measuring force is reached
• Real-time graphical measurement display
• Adjustable colour analogue measurement scale
• HUB connectivity for external MICROTECH wireless devices
• 2D connectivity for wireless connection and display of external measuring devices
• Wireless probe connectivity for external indicators and lever indicators with automatic measurement mode
• Internal memory for up to 2,000 measurements with folder organisation and statistical analysis
• GO/NO-GO tolerance indication with colour-coded results
• MIN/MAX peak measurement function
• Timer function for automated measurements
• Programmable mathematical formula (Ax² + Bx + C)
• Manual temperature compensation
• Linear measurement error compensation
• Calibration date monitoring
• Connection status indication on the main display
• Built-in rechargeable lithium-polymer battery with micro-USB charging connection
• Firmware updates via USB connection

Data Transfer & Connectivity:
The MICROTECH MICRON Tablet height gauge offers versatile data transmission options for integration with digital measurement systems and Industry 4.0 environments.
• Wireless: Long-range data transmission to the MICROTECH MDS application, available for Windows, Android and iOS.
• Wireless HID: Direct data transmission to compatible devices and applications using keyboard emulation, with configurable data output.
• USB HID: Direct keyboard-style data transmission to compatible devices and applications, with configurable data output.

Calibration & Quality Assurance:
All MICROTECH height gauges feature precision hand-finished measuring surfaces with a surface roughness of Ra < 0.32 µm and undergo metrological inspection in an ISO/IEC 17025-accredited laboratory recognised under the ILAC MRA.

Customisation:
Additional measurement functions and mathematical formulas can be developed and integrated upon request to meet specific customer requirements and Industry 4.0 applications.
